  • Creo Piping and Cabling Extension (PCX) is the perfect 3D solution.

    • It supports all types of industries and styles of piping and cabling–so you can streamline and accelerate the entire design process.

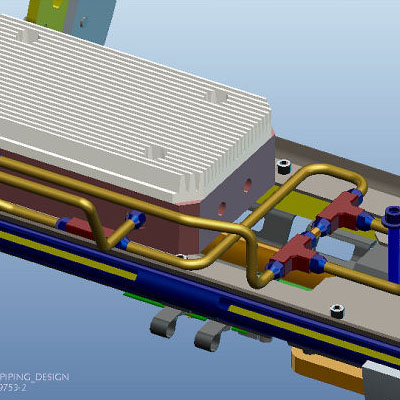

    • Whether you’re designing products with a complex web of cables and harnesses, hydraulic or pneumatic hoses, high and low pressure tubing, copper work, or even large bore pipes, Creo PCX can handle it.

    Creo Piping and Cabling Slider Image1
  • Accelerate 3D routed systems design.

    • Determining the routes of pipes and cables can be a difficult, time-consuming task. But with Creo PCX, this problem can be avoided.

    • Creo PCX enables designers to fully automate the piperouting process.
    • Designers no longer have to build physical prototypes and struggle through the trial-and-error process.
    Creo Piping and Cabling Slider Image2
  • Cabling Design Capabilites

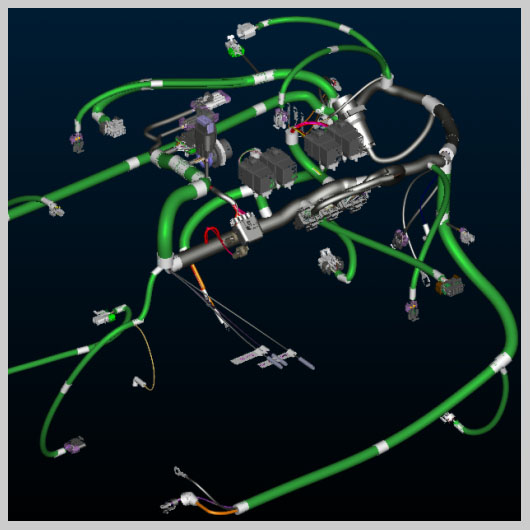

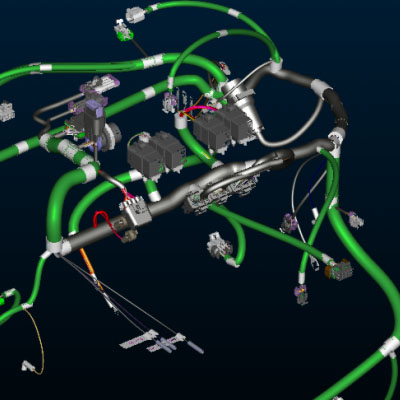

    • Automatically flatten 3D harnesses for manufacturing documentation

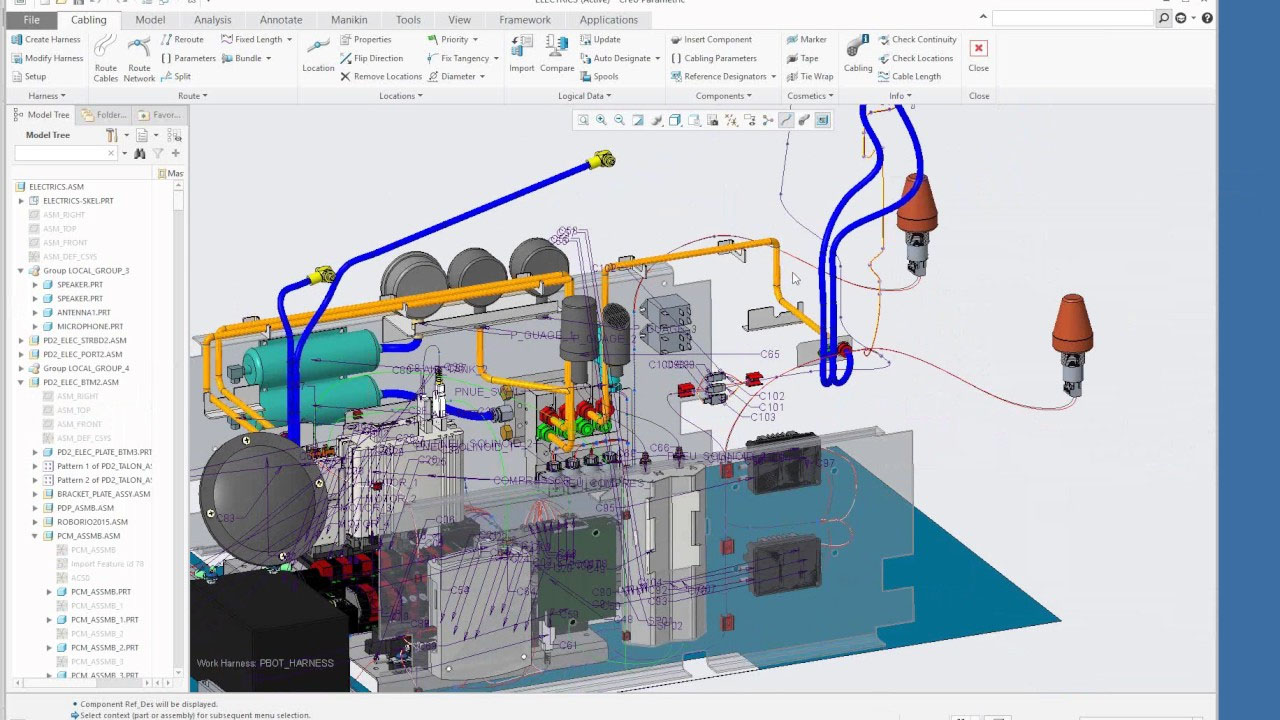

    • Automate harness routing by referencing 2D logical information

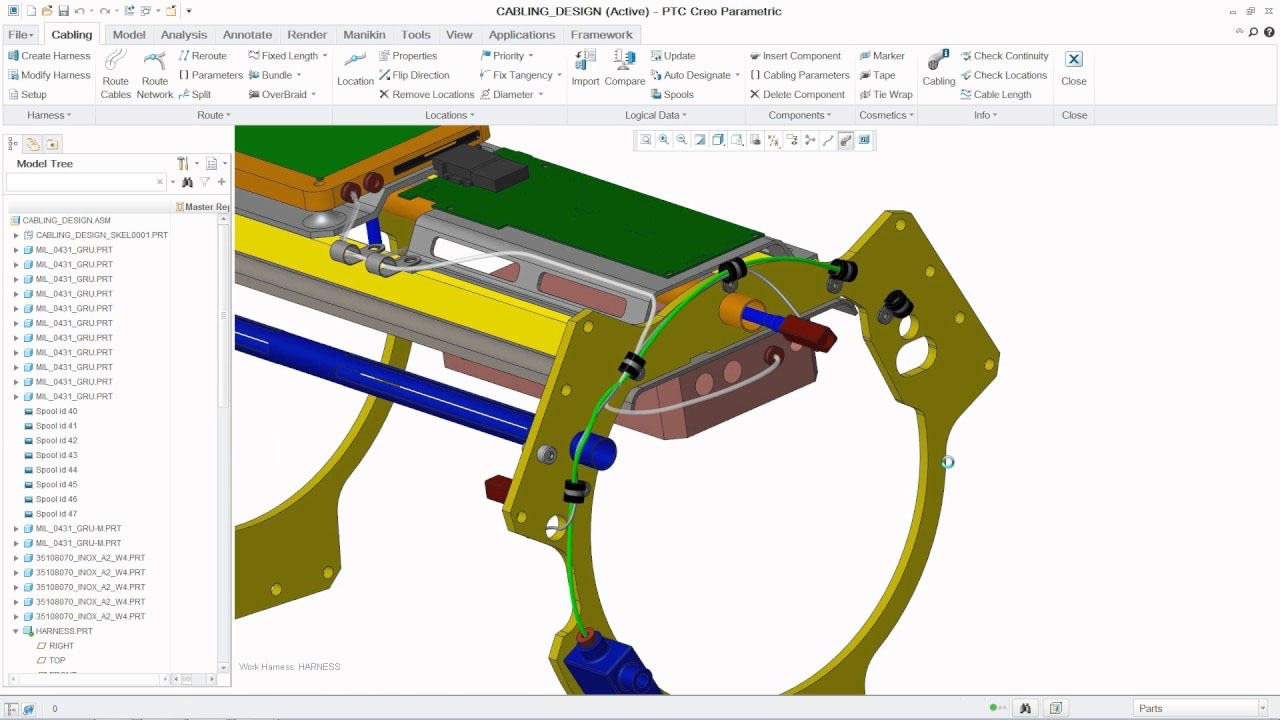

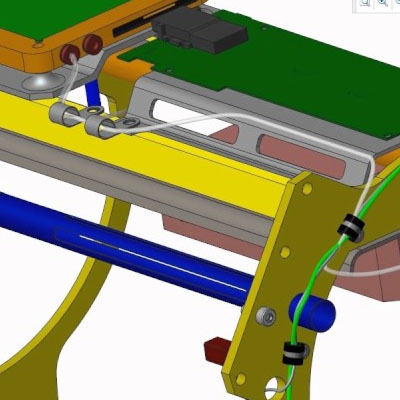

    • Digitally define complete 3D harnesses with connectors and components
    • Automatically route ribbon cables and cable shields
    • Create ribbon cables faster using automated capabilities
    • Calculate mass properties and perform clearance evaluations
    Creo Piping and Cabling Slider Image3

- Creo Piping and Cabling Extension -
Accelerate your Piping and Cabling Design Process

  • Accelerate 3D Routed Systems Design

    Determining the routes of pipes and cables can be a difficult, time-consuming task. Beginning with the creation of a physical prototype and then manually routing the pipes through it, this long, tedious process is typically error-prone. Because of the time and effort involved, the engineer often must accept the first route that works – not necessarily the optimal one. With Creo PCX, these problems can be avoided.

  • Piping Design

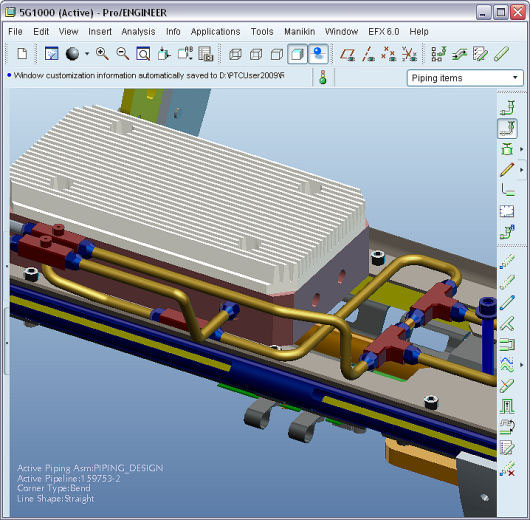

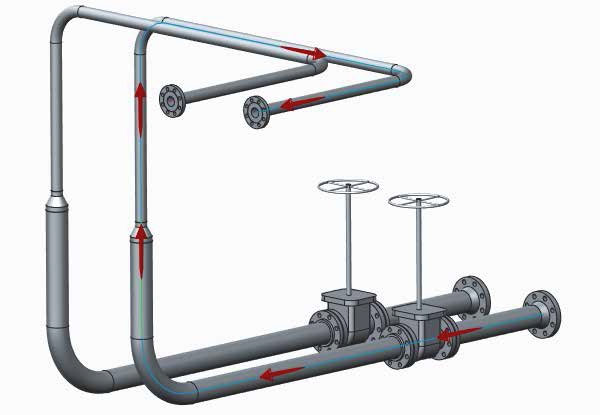

    Creo PCX enables designers to fully automate the piperouting process. Designers no longer have to build physical prototypes and struggle through the trial-and-error process; they can determine – virtually – the optimal paths of the pipes in the model. In addition, designers can create rules that are based on company best practices or corporate policies. By establishing rules, the software can then verify that this optimal path is compliant with established manufacturing rules. P

  • Creo Schematics Lite

    Creo Schematics Lite provides all the capabilities that designers of piping and cabling systems need to easily capture the logical connectivity information in 2D schematics. Included with Creo PCX, Creo Schematics Lite is an introductory schematic tool that can grow with your design needs. Advanced capabilities, such as design reuse support, multiuser capabilities, customization for design automation, and central catalog, can be added optionally.

  • Cabling Design

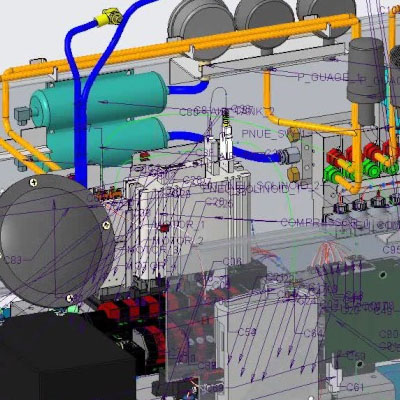

    Creo PCX gives you the power to extract logical information from 2D schematics while automating your 3D cable routing. Not only can you determine a working route quickly, but you can easily find the optimal route that won’t interfere with the design. Plus, since it’s a Creo Parametric model, it has the advantage of full associativity; that means any change made to the model is automatically reflected in the cabling routes! With fewer (if any) physical prototypes and shorter design cycles, you’ll save significant time and money.

    Check out the full list of all our Creo products: See More...

More reasons to Love PCX

Automate Cabling Routing


Electronically document the entire design process.

  • Automatically flatten 3D harnesses for manufacturing documentation
  • Automate harness routing by referencing 2D logical information

  • Digitally define complete 3D harnesses with connectors and components
  • Modify cabling networks faster with drag handles and on the fly editing capabilities

  • Automatically route ribbon cables and cable shields
  • And much more....
